CFORCE 520 QUAD

£5,999.17

excl VAT

CFORCE 520 QUAD

With its low weight and compact footprint, ease of maintenance, excellent durability, premium standard equipment and excellent price, the CFORCE 520 has become a very impressive mid-size ATV.

CFMOTO recommends that the rider should always wear a helmet, eye protection and other protective clothing.

The latest evolution of mighty CFORCE 520 now includes:

  • Improved rider ergonomic
  • New exterior design
  • 25% tighter turning radius over previous model
  • Lighter weight but stronger frame
  • Overall noise and vibration reduction
  • Heatshield improvement on lower leg area
  • Higher air intake position
  • Bigger fuel tank
  • More storage space
  • New dashboard
  • Arched front A-Arms for increased ground clearance



Cforce 520 300x300

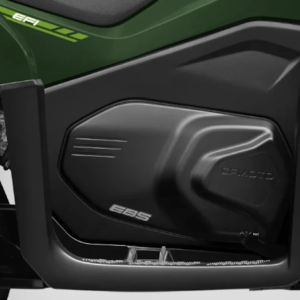

Powerful engine
Engine temperatures can climb during sustained low-rpm use, but the CFORCE 520 is engineered for comfort throughout your workday. Revised radiator design and improved cooling means leg area temperatures remain 25% lower than previous models. When it comes to long hours in the field, vehicle vibration is a critical factor that can wear you down. The CFORCE 520 has the lowest vibration in class across the entire torque range (vibration measured at handlebar grip, seat, and footrests).
Cforce 520 2 300x300

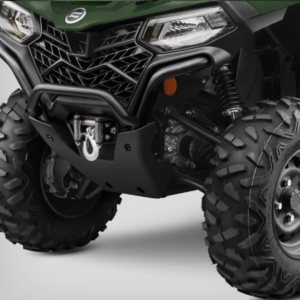

Electronic Power Steering
An electronic control unit interprets steering input and provides appropriate feedback with respect to speed. At low speeds you get more assistance — less at higher speeds.
Cforce 520 3 300x300

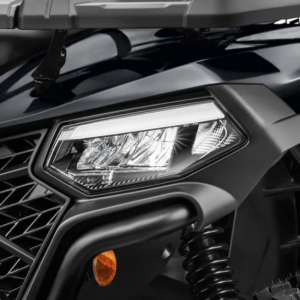

RideVision™ LED Lights
To ensure the best visibility, RideVision™ LED light technology is standard on the all-new CFORCE 520.
Cforce 520 4 300x300

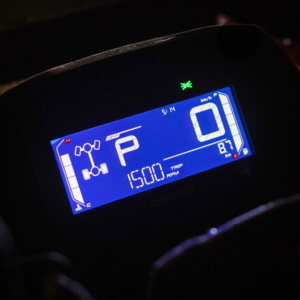

3.5″ LCD display
The CFORCE 520 has a 3.5-inch digital gauge and all-new user interface, providing better readability for key rider information.
SPECIFICATIONS
Engine
Chasis
Dimensions
  • Engine Type: Single-cylinder, Liquid cooled, 4-stroke, SOHC, 4-Valve
  • Displacement: 495 cc
  • Maximum Power: 25.5kW/6750 rpm
  • Maximum Torque: 39 N·m/5750 rpm
  • Fuel Supply: BOSCH EFI
  • Ignition: ECU
  • Transmission: CVT
  • Drive: Switchable 2WD/4WD
  • Suspension: Front/Rear: Double A-arm independent suspension
  • Shock Absorber: Front/Rear: Spring pre-load adjustable, oil damped
  • Rim: Front/Rear: 12″
  • Length x Width x Height: 2186 × 1157 × 1210 mm
  • Wheelbase: 1288 mm
  • Minimum Ground Clearance: 249 mm
  • Minimum Turning Diameter: 5.6 ± 0.5 m
  • Dry Weight: 344 kg
  • Towing Capacity: 802 kg
  • Fuel Capacity: 16.5 L

Includes 2-year parts and labour warranty

ATV Performance Parts & Servicing

Maintaining your ATV is very important if you want to keep it running smoothly with out breaking down, it is also important for rider safety.

If you have just bought a new ATV you should get it serviced within the first 30-40 days of operation. Harder than normal use (racing) and exposure to mud, water, sand, high humidity etc. will naturally dictate more frequent maintenance.
